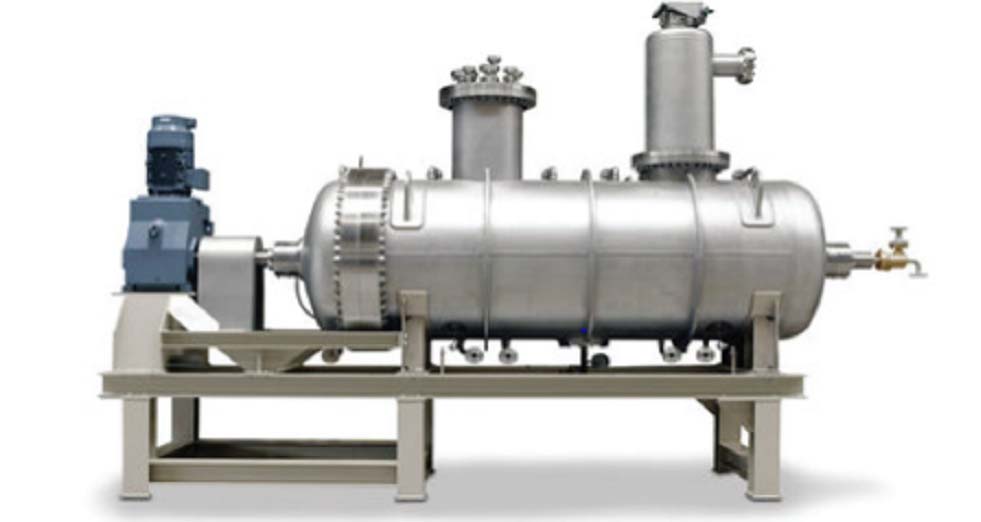

Rotary Vacuum Paddle Dryer
A Rotary vacuum paddle dryer is used to obtain dry powder from a wet cake or solutions in a batch process under vacuum condition.
- Volume range – 50kg to 3000kg
- MOC grade – S.S.316L, S.S.304L & I.S2062
- Temp. range – 80deg to 350deg celcius
- Easy quick and reliable operation
- Semi-automatic & jacketed arrangements are provided
Salient Features of Rotary Vacuum Dryers (RVD) :
- Very suitable for drying materials which are heat sensitive, as low temperature for drying can be maintained by high vacuum
- Lowest energy consumption compared to any other batch type dryer due to higher differential temperatures.
- Higher Thermal Efficiency
- Granular/pasty wet materials can be handled
- Low-temperature operation is possible
- Almost 100% recovery of solvents
- Heating Temperature:- From 30°C to 300°C
Applications of Rotary Vacuum Dryer
Rotary Vacuum Dryer can be used in various areas like:-
- Pharmaceutical Industry
- Organic Chemicals and Agro Chemicals
- Food Product
- Dye Intermediates
Glimpse
